Shimano CUES ST-U6030 / BR-U6030 Rear Hydraulic Disc Brake Set
$1,380.00
Color Options
BlackSize Options
A right-hand 11/10-speed hydraulic lever, sold with the rear flat-mount caliper. The Shimano CUES rear set is ST-U6030-R plus BR-U6030-R. The lever is marked for LINKGLIDE 11-speed and 10-speed, with up to two rear gears per sweep. The caliper is a 2-piston flat mount for 160 mm and 180 mm rotors.
At a glance
- Category: Shimano CUES hydraulic disc brake set, rear
- Brand: Shimano (Japan)
- Models: ST-U6030-R lever, BR-U6030-R caliper
- Shifting: right side, rear 11/10-speed, LINKGLIDE 11/10-speed system
- Caliper: flat mount, 2 pistons, pad B05S-RX resin without a fin
- Rotors: 160 mm and 180 mm
- Fluid: Shimano mineral oil. The distributor lists this code as a J-kit rear set
- Clamp: 23.8–24.2 mm, with reach adjust
- Pairs with: CS-LG400-10 11-48T cassette and RD-U6000-GS rear derailleur for a 10-speed build
Rear brake and rear shift share one lever

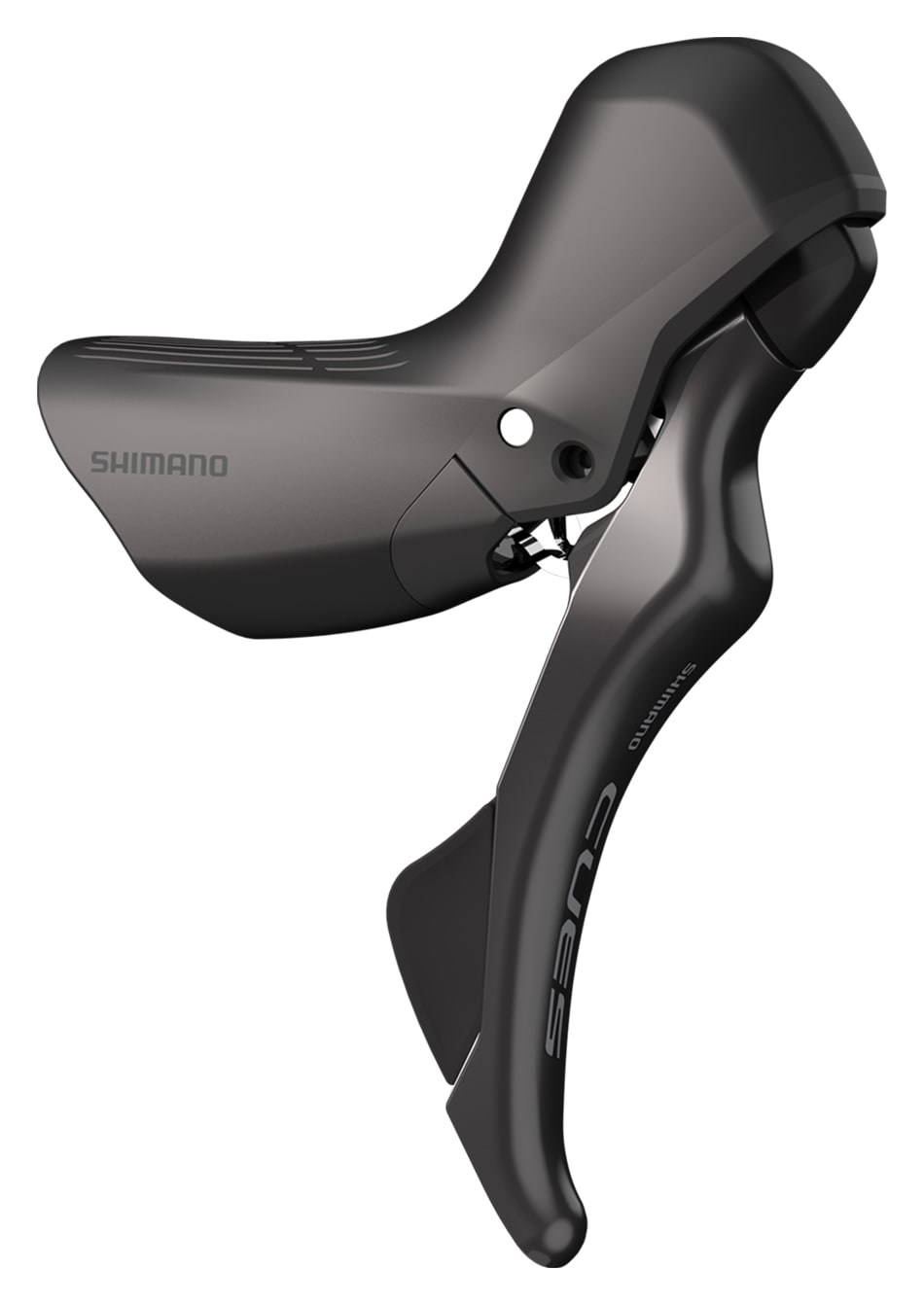

ST-U6030-R puts the rear brake and the rear shift on the right hand. It is not a cable shifter. It will not run a rim brake or a cable disc caliper. The cable right lever is ST-U3030-10R.
A double chainring also needs the front hydraulic set. Both pages are drafts until they are published together.
Which bikes it suits
- Drop bars, clamp 23.8–24.2 mm, flat-mount rear triangle
- LINKGLIDE 11-speed or 10-speed rear shifting
- A rear rotor of 160 mm or 180 mm
What matters on this set
Up to two gears per sweep
The specification lists a maximum of 2 multiple shifts on the main rear lever. The inner-cable row marks OPTISLICK and also lists steel; the lever-side outer casing is OT-SP41. That is the specified cable, not a promise that a full new cable is in the box.
The same 2-piston flat-mount layout as the front
Shimano describes this flat-mount brake as an integrated design for a 160 mm rotor, with a 2-piston body. The rear caliper is marked for 160 mm and 180 mm only. Fluid is Shimano mineral oil. The caliper has ONE WAY BLEEDING and the lever has funnel bleeding. The kit hose is SM-BH59-JK-SSR, black, straight joint. Hose length is not in the table.
Sold as a J-kit rear set
The distributor’s English name for this code is a J-kit rear assembled set, and the official caliper table also marks J-kit for OEM. If the hose has to be shortened or replaced, contact us before ordering.
Front set and rear set
| Front set | Rear set (this page) | |
|---|---|---|
| Lever | ST-U6030-L, left | ST-U6030-R, right |
| Shifting | Front, 2-speed | Rear, 11/10-speed, up to 2 gears |
| Caliper | BR-U6030-F | BR-U6030-R |
| Distributor name | Front set, resin pad | J-kit rear set |
| Rotors | 160 mm, 180 mm | 160 mm, 180 mm |
| Fluid | Shimano mineral oil | Shimano mineral oil |
Comparison source: Shimano productinfo and the distributor product name.
Contact us before ordering
Contact us with the rear mount (flat or post), rotor size, whether the bike is 10-speed or 11-speed, and the bar diameter.
Specifications
| Brand | Shimano CUES |
|---|---|
| Lever | ST-U6030-R |
| Caliper | BR-U6030-R |
| Rear speeds | 11/10 |
| Multiple shifts | 2 (main lever, rear) |
| System note | LINKGLIDE 11/10-speed |
| Recommended caliper | BR-U6030, BR-RS405 |
| Hose (kit) | SM-BH59-JK-SSR, black, straight joint |
| Fluid | SHIMANO Mineral |
| Mount | Flat mount, 2 resin pistons |
| Standard pad | B05S-RX resin (without fin) |
| Rotors | 160 mm, 180 mm |
| Clamp band | 23.8–24.2 mm |
| Reach adjust | Yes |
| Inner cable spec | OPTISLICK marked; steel also listed |
| Outer casing, lever side | OT-SP41 |
| J-kit | Named by the distributor and marked on the caliper specification |
| Official weight | Not published |
Source: Shimano productinfo (ST-U6030-R, BR-U6030-R) and bike.shimano.com.
What is in the set
The distributor code is the rear set ST-U6030-R and BR-U6030-R, named as J-kit. Shimano’s kit note includes the standard pad and two fixing screws, and excludes an adapter. A rotor is separate. Hose length is not published in the table.
FAQ
Is this rear brake 10-speed, or 11-speed only?
Shimano lists it as 11/10-speed and notes LINKGLIDE 11/10-speed compatibility. For a 10-speed cassette, see CS-LG400-10 11-48T.
What fluid is used to bleed it?
Shimano mineral oil. Do not use DOT brake fluid. The lever supports funnel bleeding and the caliper has ONE WAY BLEEDING.
Will it take a 203 mm rear rotor?
No. BR-U6030-R is marked for 160 mm and 180 mm only.
Can the cable lever ST-U3030-10R run this caliper?
No. ST-U3030-10R is a NEW SUPER SLR cable lever. BR-U6030-R needs a hydraulic lever. Shimano’s recommended list includes ST-U6030.
Specifications and components follow the manufacturer's latest release and may change without notice. If in doubt, please contact us to confirm before ordering.
Last updated: October 2026
